520g m2 Heat Proof Filament Fiberglass Cloth - Steel Wire
Reinforced
Product Description

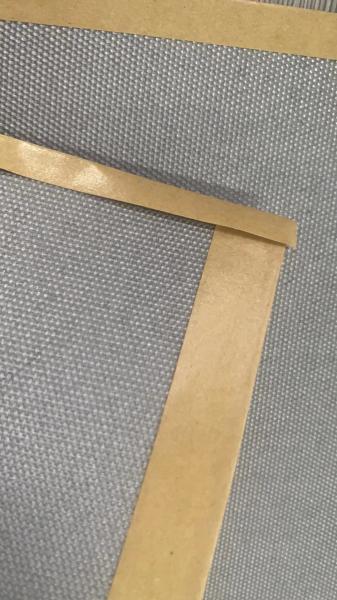

520gm2 Heat Resistant Filament Fiberglass Cloth - Steel Wire
Reinforced Made of stainless steel wire reinforced non-asbestos
textured glass fiber yarn. The reinforcement of the stainless steel
wire significantly increases the tensile strength.
It will not burn and can withstand continuous high temperature
exposure. 1022°F/550°C; Most oils and alkalis are resistant, and
most bleaches and solvents are unaffected. It is the best
substitute for asbestos products.
In order to meet unique requirements, it can be used in various
thermal insulation and thermal safety, as well as for finishing
treatment cloth
Why we used 316/V4A stainless instead of 304 wire?
Type 304 stainless steel is the most common stainless steel
formulation used in industrial and consumer applications. Alloyed
with chromium and nickel, 304 is resistant to many corrosion
attacks.
316 stainless steel is similar in chemical composition to 304 but
also contains molybdenum. This addition makes it more resistant to
corrosion.
In other words, 316 steel wire has higher tensile strength than
304, can provide higher temperature resistance, and can improve
service life in harsh environments
Product Features
Thickness 0.024''
Weight 20oz/yd2
Weave: plain
Width: 40'' 60''
With stainless steel wire reinforced in warp and weft direction
Thread count: warp36/inch weft36/inch
Temp. resistance up to 1022°F /550°C
Application
Fire and smoke curtains
Reusable heat insulation covers
Waterproof
800 degress heat resistance
Fire retardant
High Strength
Durable
Technique Data Sheet for Stainless Steel Wire Fiberglass Cloth
| Items | Technical Requirement |
| Width | 100cm |
| Cloth Thickness | 0.55±0.05 mm |
| Cloth Weight | 520g/m2 |
| Warp Yarn | 150 Tex + Stainless Wire |
| Weft Yarn | 150 Tex + Stainless Wire |
| Warp and Weft Density | 16*9 Ends/cm |
| Warp Tensile Strength [25*200mm] | 3400N/5cm |
| Weft Tensile Strength [25*200mm] | 3000N/5cm |
| Temperature Resistance | 600oC |
Much More Related Stainless Steel FIberglass Cloth
| Product Type | Thickness mm | Weight g/m2 | Weave |
| PW05 SS | 0.5 | 455 | Plain |
| 666 SS | 0.6 | 630 | 8H Satin |
| 666 SS | 0.6 | 630 | 8H Satin |
| M860W SS | 0.8 | 820 | Dougle Weft Yarn |
| M860 SS | 0.75 | 820 | 8H Satin |
| M860C SS | 0.8 | 820 | Close To Satin |
| M30 SS | 1.2 | 1050 | Plain |
| Other thicknesses can be customized upon request |
More Detail Images
More Related Reinforced Fiberglass Fabric With Steel Wire
Fiberglass Cloth
Packing
Why Choose Us?
With a complete industrial chain, we can totally control the
product quality and delivery time.
High quality products
ISO9001 2015 Certification
100% Testing before shipment, All products must pass the factory
test
Different Sized of materials can be provided according to customer
needs
RFQ
1. Are you a factory or trading company?
A: We are a factory.
2. How to get free samples?
A: You can contact our sales staff. We can send you some samples
for free. But we do not pay for shipping.
3. Are your products certified?
A: Yes, we have a third party fire inspection report
4. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack
according to customers' requirements.
5. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to
provide basic cloth
6. Q:Do you have other production?
A:Certainly,we still have E-glass fiberglass fabric, industry
fiberglass cloth, High silica cloth, silicone, polyurethane,
graphite, vercimiute, EPDM, fluoro,aluminium coated fiberglass
cloth. We are looking forward to your enquiry.
