0.65mm 650 Stainless Steel Wire Reinforced Fiberglass Fiber Glass
Cloth for Fireproof Curtain
Product Description

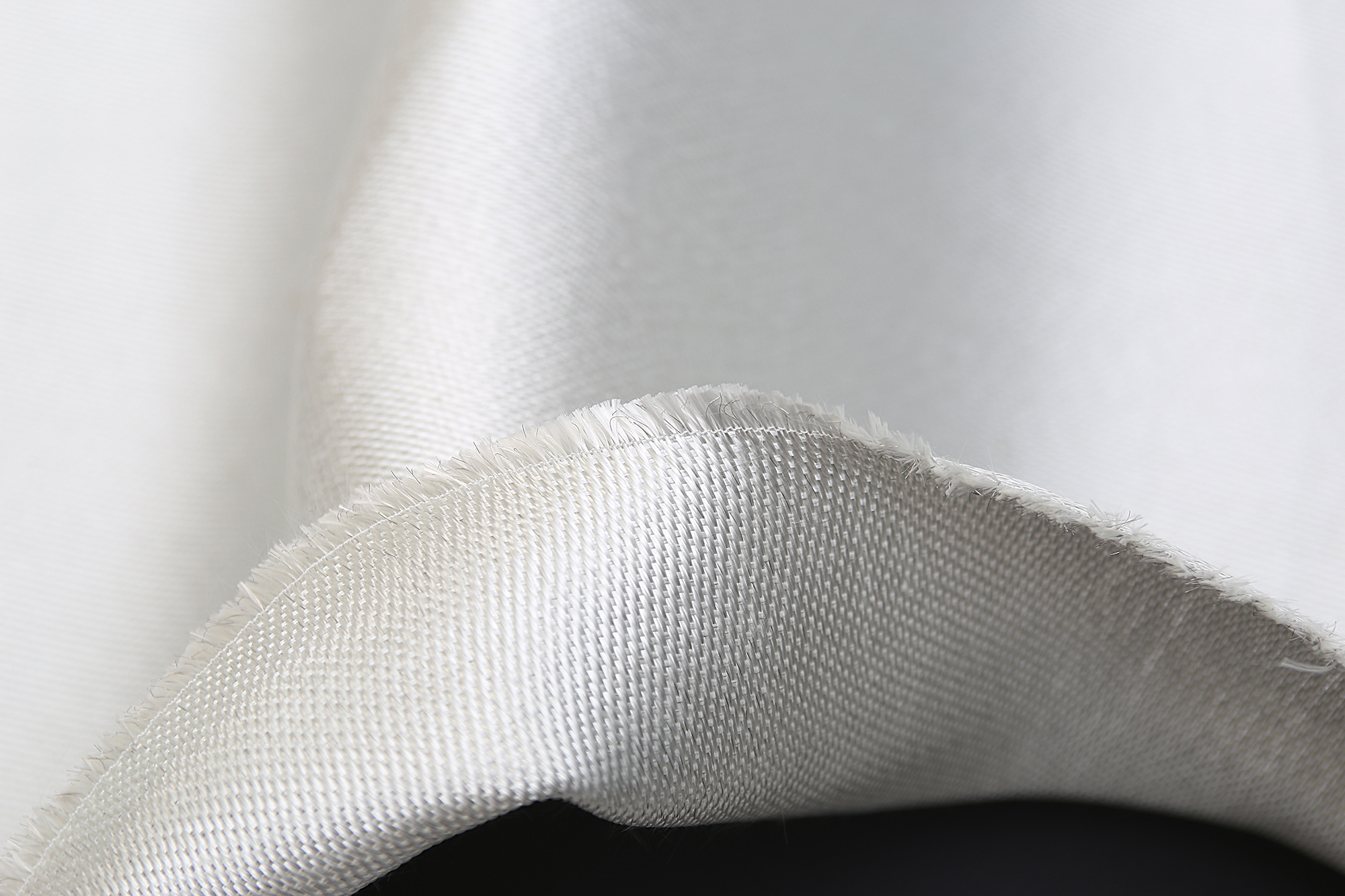

This fire-resistant fiberglass fabric is made of fiberglass fabric
and polyurethane coating. It has many excellent characteristics
such as excellent fire resistance. excellent wear resistance, cold
resistance, water resistance, anti-ultraviolet, and mechanical
properties. It can be used continuously at 180ºC. Jiangnan can
supply other colors according to customers' requirements.
Product Features
Good rebound resilience
Toughness, softness
Superior resistance to wear, cold, oil, water, aging, and weather
Application
welding & fire protection
thermal insulation jackets,mattress
expansion joint belt
a protective scrim of insulation wool
composite reinforcement
Technique Data Sheet for Stainless Steel Wire Fiberglass Cloth
| Items | Technical Requirement |
| Width | 100cm |
| Cloth Thickness | 0.6±0.05 mm |
| Cloth Weight | 520g/m2 |
| Warp Yarn | 150 Tex + Stainless Wire |
| Weft Yarn | 150 Tex + Stainless Wire |
| Warp and Weft Density | 39*38 Ends/In |
| Warp Tensile Strength [25*200mm] | 2200N/2.5cm |
| Weft Tensile Strength [25*200mm] | 2100N/2.5cm |
| Temperature Resistance | 600oC |
Much More Related Stainless Steel FIberglass Cloth
| Product Type | Thickness mm | Weight g/m2 | Weave |
| PW05 SS | 0.5 | 455 | Plain |
| 666 SS | 0.6 | 630 | 8H Satin |
| 666 C SS | 0.6 | 630 | 8H Satin |
| M860W SS | 0.8 | 820 | Dougle Weft Yarn |
| M860 SS | 0.75 | 820 | 8H Satin |
| M860C SS | 0.8 | 820 | Close To Satin |
| M30 SS | 1.2 | 1050 | Plain |
| Other thicknesses can be customized upon request |
More Detail Images
More Related Reinforced Fiberglass Fabric With Steel Wire
Fiberglass Cloth
Packing
Why Choose Us?
With a complete industrial chain, we can totally control the
product quality and delivery time.
High quality products
ISO9001 2015 Certification
100% Testing before shipment, All products must pass the factory
test
Different Sized of materials can be provided according to customer
needs
RFQ
1. How to get free samples?
A: You can contact our sales staff. We can send you some samples
for free. But we do not pay for shipping.
2. Are your products certified?
A: Yes, we have a third party fire inspection report
3. How to package your product?
A: We pack the product in a carton or PVC bag. We can also pack
according to customers' requirements.
4. Are you a manufacturer?
A: Yes, we are a Chinese manufacturer. We have advanced looms to
provide basic cloth
