Fire Resistance /Fireproof/heat Resistant Sleeve Fiberglass
Silicone Rubber Coated Fire Sleeve

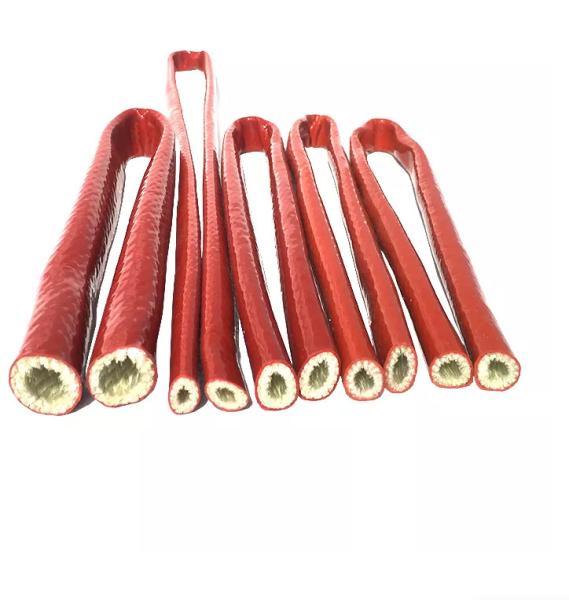

Description for High-Temperature Silicone Rubber Fiberglass
Sleeving
We coat an extra thick special formulation of silicone rubber on
our texturized fiberglass sleeves. It can protect industrial hoses
and lines from molten metals, slag, welding splatter, electrical or
grinding sparks, and contamination. It also provides protection
from ozone, UV, and abrasion. The standard color of the coating is
red-oxide, but custom colors such as blue, grey, black, yellow, and
green are available
| Inner diameter | 10mm-115mm |
| Color | Red, black, other colors can be made according to customer's need,
nylon fastening optional color: white or black |
| Work temperature | Can used continuously at - 75 ° C to 260 ° C, short moment
resistance can be up to 1650 ° C |
| Nominal voltage | 7kv--25 kV. |
| Product properties | Fire prevention, flame retardant, heat insulation, insulation,
anti-aging, prevent splash |
Operation Temperature
Continuous Operating Temperature: -65 ° C - 260 ° C
15-20 minutes: 1090 ° C
15-30 seconds: 1650 ° C
Technique Data
| Description: | Texturized fiberglass sleeve with silicone coating |
| Contents: | 100% glass fiber and silicone rubber |
| Yarn type: | 9 um |
| Internal Diameter : | 30mm |
| Thermal Conductivity | 0.035(w/(m.k) |
| Continuous Temp resistance: | No more than 550 0C |
| Freeze temp: | -50 0C |
| Loss on Ignition | ≦3.52% |
| Chemical composition |
| SiO2 | Al2O3 | CaO | MgO | R2O | Fe2O3 |
| 67.3±0.5 % | 6.4±0.4% | 9.6±0.3% | 4.5±0.3 % | 11.8~16.1% | ≤0.4 |
|
|
Features:
Advanced production equipment
ISO 14000 / ISO 9000 / Quality certificate
Strict quality inspection, Strong R&D team
Environmental friendly without pollution
10 years manufacturing experience, strong and experienced export
team
Application:
It provides a high degree of insulation value, protecting hot or
cold or cryogenic lines, pipes and tubing from heat or cold loss,
providing energy savings and abrasion resistance.
Detail Images
The Other Types Recommended:
| Dia (mm) | Internal Dia (mm) | Length (m) | Thickness(mm) |
| Silicone | Glass Yarn |
| 1 | 6 | 6.5 | 20 | 0.6 | 1.0 |
| 2 | 8 | 8.5 | 20 | 0.8 | 1.0 |
| 3 | 10 | 10.5 | 20 | 0.8 | 1.0 |
| 4 | 12 | 12.5 | 20 | 0.8 | 1.2 |
| 5 | 15 | 15.5 | 20 | 0.9 | 1.2 |
| 6 | 20 | 20.5 | 20 | 0.9 | 1.4 |
| 7 | 22 | 22.5 | 20 | 0.9 | 1.4 |
| 8 | 25 | 25.5 | 20 | 1 | 1.6 |
| 9 | 30 | 30.5 | 20 | 1.1 | 1.8 |
| 10 | 32 | 32.5 | 20 | 1.2 | 1.8 |
| 11 | 35 | 35.5 | 20 | 1.1 | 2 |
| 12 | 40 | 40.5 | 20 | 1.2 | 2.1 |
| 13 | 45 | 45.5 | 20 | 1.2 | 2.2 |
| 14 | 50 | 51 | 20 | 1.2 | 2.3 |
| 15 | 55 | 56 | 20 | 1.3 | 2.4 |
| 16 | 60 | 61 | 20 | 1.3 | 2.5 |
| 17 | 65 | 66 | 20 | 1.3 | 2.6 |
| 18 | 70 | 71 | 20 | 1.4 | 2.7 |
