    985 Style Plain Weave E Fiberglass Cloth For Making Tape / Glass Cloth Electrical Tape

    Ask Lasest Price
    Brand Name : Shenghe
    Model Number : Style 985
    Certification : NA
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 10000 meters per day
    Delivery Time : 10-15 Work Days
    • Product Details
    • Company Profile

    985 Style Plain Weave E Fiberglass Cloth For Making Tape / Glass Cloth Electrical Tape

    China 985 Style Plain Weave Fiberglass Fabric For Making Tape And Glass Cloth Electrical Tape


    1. Description

    Fiberglass is a strong lightweight composite material and is used for many products. Although it is neither as strong nor stiff when compared to carbon fiber, it is less brittle and its raw materials are much cheaper. Its bulk strength and weight are also better than many metals, and it can be more readily molded into complex shapes. Applications of fiberglass include aircraft, boats and automobiles. We are main provide each different kind of electrinic insulation glass fiber fabrics and fireproof industry fiberglass cloth


    2. Properties

    Strong Lightweight Composite Material

    Fiberglass is Less Costly than Carbon Fiber

    Great for Molding Into Complex Shapes


    3. Fiberglass Cloth Application

    Electronic grade fiberglass cloth is made of E glass fiber on air jet loom. It is widely used in the electronics industry such as copper clad laminate, printed board. 985 style cloth is suitable for making tapes.

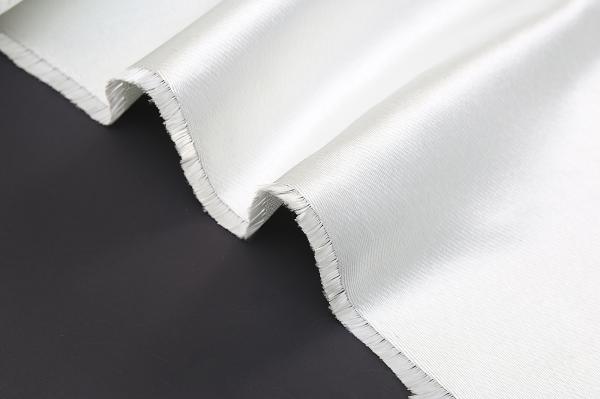

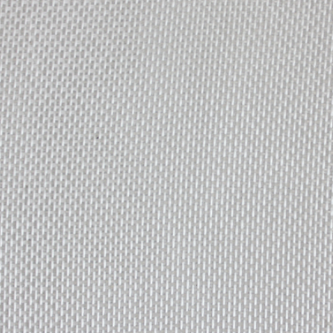

    4. Detail Style 985 Fiberglass Cloth Image


    5. Data Sheet for 985 Fiberglass Cloth


    Specification-985
    NO.Technical DataSI UnitsUS System
    1Weave StylePlain
    2Fabric Weight139g/m24.2oz/yd2
    3Width (cm)107 127 157 207 254
    4Length (m)2500
    5Yarn Density
    Ends Warp50/cm24/in
    Picks Weft25.4/cm22/in
    6Yarn
    WarpEC5 11ECD 450 1/0
    WeftEC9 33ECD 150 1/0
    7Thickness0.13mm5.1mils

    6. We have dozens of E-glass fiberglass cloths which are closely woven. They are suitable for industries such as insulation, electronics, adhesive tape making. Here below are some typical styles:

    NO.StyleWidth, cmWeight,g/m2Thickness, mmWeaving type
    1104107 12718.7±3.00.028Plain
    2106107 12724.8±3.00.036Plain
    31070107 12733.4±3.00.055Plain
    41080107 127 15746.8±3.00.062Plain
    51280107 127 15753.6±3.00.064Plain
    62112107 127 15771.5±4.00.081Plain
    72113107 127 15779.3±4.00.080Plain
    83313107 127 15781.4±4.00.084Plain
    91674107 127 157 207 25498.0±4.00.100Plain
    102116107 127 157 207 254106.8±4.00.094Plain
    111165107 127 157 207 254121.0±8.80.110Plain
    121522107 127 157 207 254123.4±8.80.150Plain
    13154【1211】107 127 157 207 254123.8±8.80.140Plain
    14985107 127 157 207 254139.0±8.80.130Plain
    15985A107 127 157 207 254143.0±8.80.140Plain
    161652107 127 157 207 254140.0±8.80.114Plain
    171064107 127 157 207 254156.0±8.80.150Plain
    185430107 127 157 207 254180.0±8.80.153Plain
    197628L107 127 157 207 254201.0±12.00.1781/3 Twill
    207628T107 127 157 207 254205.4±16.60.180Plain
    211528107 127 157 207 254211.9±16.60.165Plain
    227638H107 127 157 207 254285.0±16.60.265Plain
    231142107 127 157 207 254290.4±16.60.279Plain
    247530107 127 157 207 254345.0±16.60.290Plain
    251523107 127 157 207 254392.0±16.60.340Plain
    26162107 127 157 207 254400.0±20.00.381Plain
    271589107 127 157 207 254414.0±20.00.406Plain
    281564107 127 157 207 254420.4±20.00.380Plain

    7. Storage and Packing
