Soft Elastic Silicone Coated Fiberglass Insulation Sleeving
High-Temperature Silicone Wire Sleeve
Description for High-Temperature Silicone Rubber Fiberglass
Sleeving

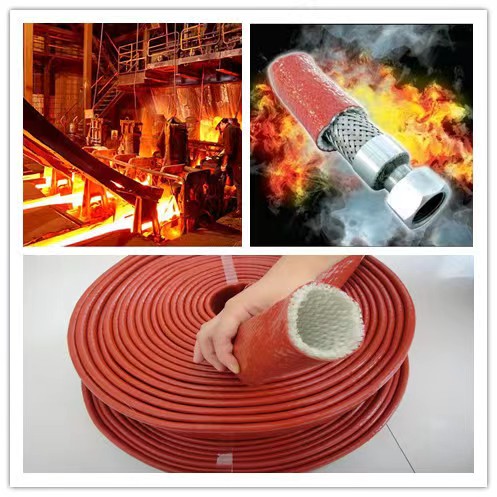

High-temperature casing, also known as fire casing, silicone rubber
glass fiber casing, is made of high-purity alkali-free glass fiber,
and then the outer wall of the pipe is coated with silicone. After
vulcanization, it can be used for a long time in the temperature
range of -65°C - 300°C, and can maintain its soft elastic
properties.
Operation Temperature
Continuous Operating Temperature: -65 ° C - 260 ° C
15-20 minutes: 1090 ° C
15-30 seconds: 1650 ° C
Technique Data
| Description: | Texturized fiberglass sleeve with silicone coating |
| Contents: | 100% glass fiber and silicone rubber |
| Yarn type: | 9 um |
| Internal Diameter : | 30mm |
| Thermal Conductivity | 0.035(w/(m.k) |
| Continuous Temp resistance: | No more than 550 0C |
| Freeze temp: | -50 0C |
| Loss on Ignition | ≦3.52% |
| Chemical composition |
| SiO2 | Al2O3 | CaO | MgO | R2O | Fe2O3 |
| 67.3±0.5 % | 6.4±0.4% | 9.6±0.3% | 4.5±0.3 % | 11.8~16.1% | ≤0.4 |
|
|
Features:
It is Flame retardant, insulation, heat insulation, heat
preservation, moisture-proof, noise reduction.
Application:
Other industries such as steel, metallurgy, shipbuilding,
automotive, aerospace, military and chemical industries. Protect
vehicle line speed and exhaust pipes.
The Other Types Recommended:
| Dia (mm) | Internal Dia (mm) | Length (m) | Thickness(mm) |
| Silicone | Glass Yarn |
| 1 | 6 | 6.5 | 20 | 0.6 | 1.0 |
| 2 | 8 | 8.5 | 20 | 0.8 | 1.0 |
| 3 | 10 | 10.5 | 20 | 0.8 | 1.0 |
| 4 | 12 | 12.5 | 20 | 0.8 | 1.2 |
| 5 | 15 | 15.5 | 20 | 0.9 | 1.2 |
| 6 | 20 | 20.5 | 20 | 0.9 | 1.4 |
| 7 | 22 | 22.5 | 20 | 0.9 | 1.4 |
| 8 | 25 | 25.5 | 20 | 1 | 1.6 |
| 9 | 30 | 30.5 | 20 | 1.1 | 1.8 |
| 10 | 32 | 32.5 | 20 | 1.2 | 1.8 |
| 11 | 35 | 35.5 | 20 | 1.1 | 2 |
| 12 | 40 | 40.5 | 20 | 1.2 | 2.1 |
| 13 | 45 | 45.5 | 20 | 1.2 | 2.2 |
| 14 | 50 | 51 | 20 | 1.2 | 2.3 |
| 15 | 55 | 56 | 20 | 1.3 | 2.4 |
| 16 | 60 | 61 | 20 | 1.3 | 2.5 |
| 17 | 65 | 66 | 20 | 1.3 | 2.6 |
| 18 | 70 | 71 | 20 | 1.4 | 2.7 |
