Red Color Silicone Rubber Coated Fiberglass Fabric With Heat
Resistance
Product Description
Silicone-coated fiberglass fabrics have very similar properties to
PTFE-coated fiberglass fabrics, but they are more flexible, very
non-stick, and have a non-slip surface that is more tear-resistant.
These fabrics are available in red, grey, black, and more on one
and two sides and are available in thicknesses ranging from 0.1mm
to 3mm.
Technique Data Sheets
Item |
Technical Requirement |
Thickness(mm) | 0.98±0.05 |
Width(mm) | 1000±10 |
Length(m/roll) | 50±0.5 |
Weight(g/m2) | 1850±50 |
Warp/weft density(thread/cm) | 20x10±1 |
Breaking Strength Warp:N/50mm Weft:N/50mm | ≥3700x1680 |
Weave | Twill |
Color | Grey |
℃ Cloth Temperature Resistance | 550 |
℃ Silicone Coating Temperature Resistance | 260 |
Properties
Superior Release Non-stick surface
High temp resistant up to 2600C
Excellent release properties
Superior abrasion resistance
Good heat insulation
Good chemical resistance
Good dielectric properties
Good weather ability
Silicone Coating Fiberglass Fabric Application
Electric insulation: Silicon-coated fiberglass fabric features a
high grade of electric insulation and bears a high voltage load due
to the E-glass Fiberglass cloth. It fits for making products like
insulation cloth and sleeves etc.

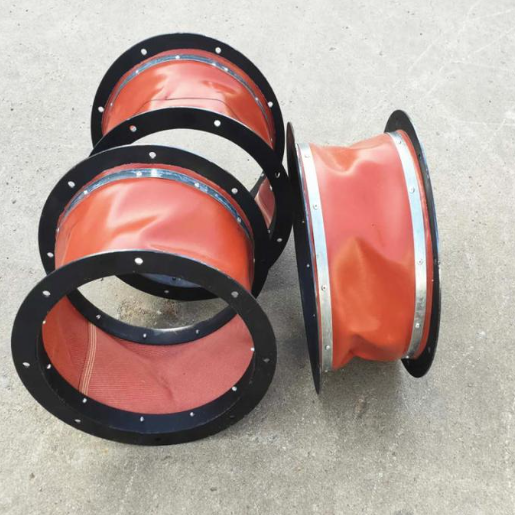

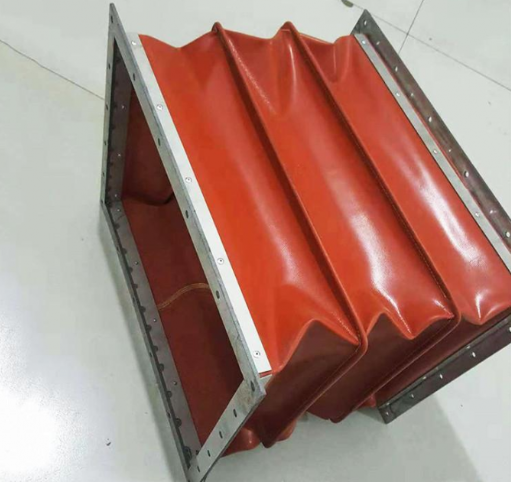

Non-metallic compensator: silicone fiberglass fabric could be used
as pipeline flexible coupling, non-metallic compensator helps to
avoid damage caused by heat expansion and cold contraction. This
membrane material is specially fit for use in industries of
petroleum, chemical engineering, cement, iron and steel, and energy
sources due to its special features of temperature resistance,
anti-corrosion, anti-aging, and good elasticity and toughness.
Anti-corrosion sector: silicone fiberglass fabric is good to be
used as an inner and outer anti-corrosion layer featuring excellent
corrosion resistance, temperature resistance, and high strength. It
proves to be an ideal anti-corrosion material.
If you need acid and alkali-resistant coating, we can also provide
you with EPDM fluorine rubber coating, etc.
Much More Related Silicone Coating Products with Different
Thickness
| Product Name | Thickness (mm) | Weight (g/m2) |
| Single-Sided Silicone Coating Fiberglass Cloth | 0.9 | 1600 |
| 1 | 1800 |
| 1.1 | 1850 |
| 1.3 | 2050 |
| 1.5 | 2560 |
| 2 | 2900 |
| 2.5 | 3400 |
| Double-Sided Silicone Coating Fiberglass Cloth | 0.6 | 850 |
| 0.8 | 650 |
| 1 | 1820 |
| 1.1 | 1850 |
| 1.5 | 2600 |
| 2 | 3300 |
| 2.5 | 4100 |
